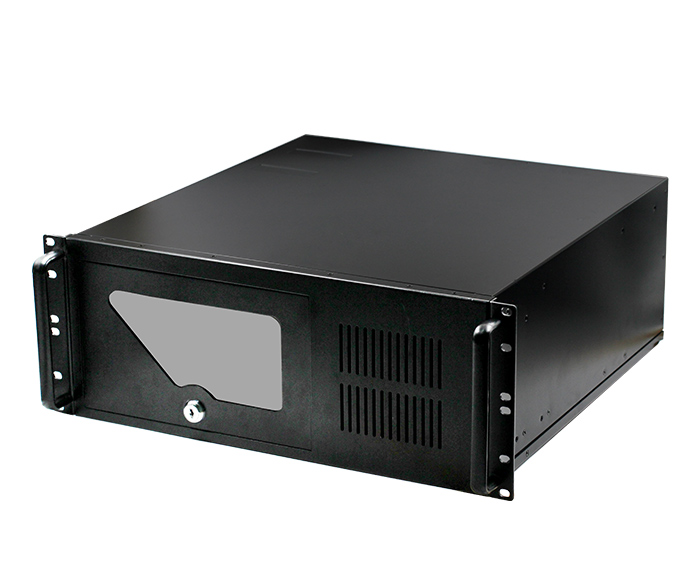

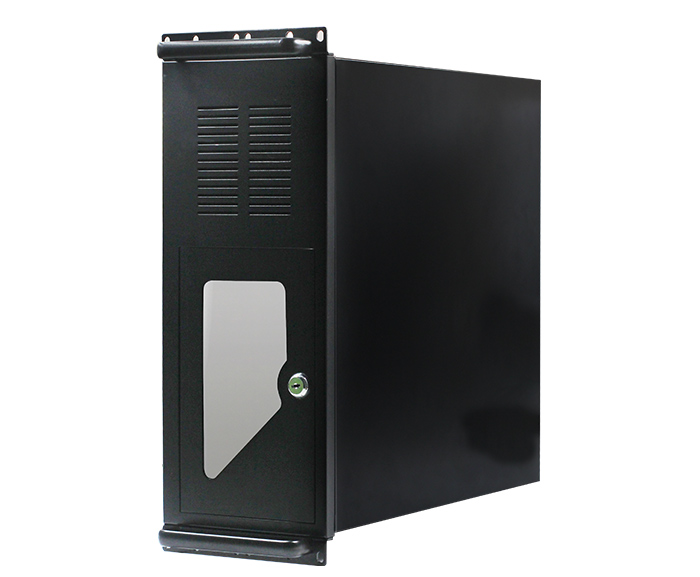

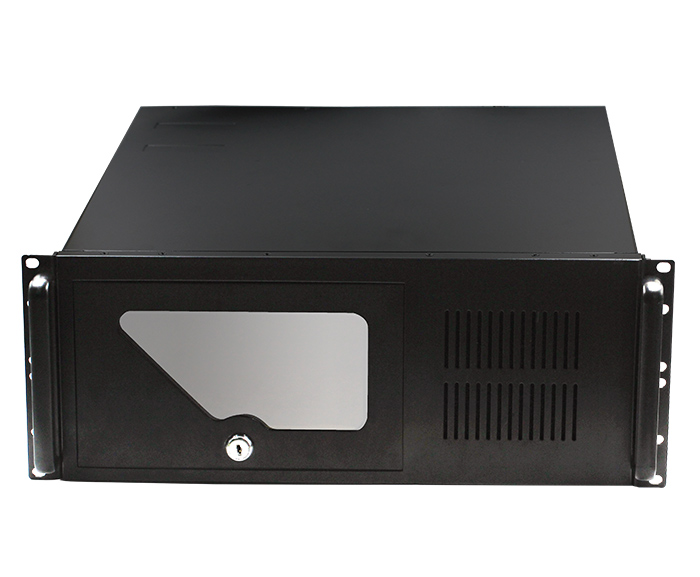

4U Computer（ITX110B）

Model : 4U Computer（ITX110B）

Description :
◆ Support LGA1151 socket Intel 6th and 7th;
i3-i5-i7/Pentium/Celeron CPU；
◆ H110/H170/Z170 high-speed chipset(excpet H110 chipset，other chipset support RAID)；
◆ 2*DDR4 Ram socket，support DDR4 2133/2400Mhz support dual channel ；
◆ 2*VGA 1*HDMI 1*DP （support three screen ,，HDMI DP support 4096*2304 4K display out put ）；
◆ 9*RS232 com，1*RS422/RS485;
◆ 1*PCIE_X16 ；
◆ ATX Power supply；
◆ size：482*450*178mm;

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support LGA1151 socket Intel 6^th and 7^th

i3-i5-i7/Pentium/Celeron CPU；

◆ H110/H170/Z170 high-speed chipset(excpet H110 chipset，other chipset support RAID)；

◆ 2*DDR4 Ram socket，support DDR4 2133/2400Mhz support dual channel ；

◆ 2*VGA 1*HDMI 1*DP （support three screen ,，HDMI DP support 4096*2304 4K display out put ）；

◆ 9*RS232 com，1*RS422/RS485

◆ 1*PCIE_X16 ；

◆ ATX Power supply；

◆ size：482*450*178mm

Specifications

Model	4U Industrial computer（ITX110B）
size	482450178mm
material	Advanced galvanized steel sheet
CPU	Support LGA1151?socket Intel 6th and 7th?i3-i5-i7/Pentium/Celeron CPU
Chipset	H110/H170?high speed chipset
Operation system	Windows7 Windows8.1 Windows10 Linux（ if with 7th CPU , only supports Windows10 and Linux）
Ram socket	4*DDR4 RAM Socket，support DDR4 2133/2400Mhz dual chanel
Lan Port	Onboard?2*?Intel I211 Gigabit Lan Port
Standard Fan	112025?fan ，or 26025?fan for optional
Expansion socket	Case support 7*Whole size PCIE Socket
CD driver	support 3*5.25 driver
Hard disk	8*3.5inch hard driver Hole
Audio	Onboard?HDA ALC662
Storage socket	2SATA Socket 1MSATA
Color	Black

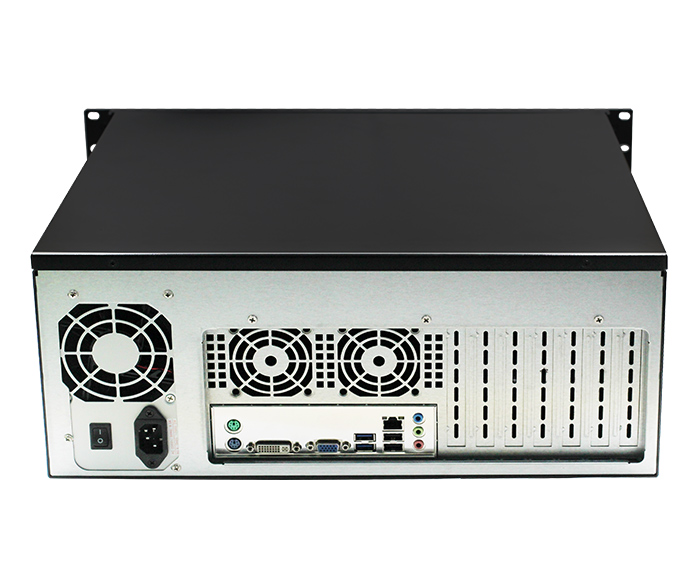

Panel Ports	1DP,1HDMI,2VGA 2LAN,6USB3.0 2USB2.0(when H110?chipset，only 4USB3.0) 1MIC-OUT/LINE-OUT/LINE IN
Power supply	Desktop Atx Power supply
Net weight	10KG
Gross weight	12.0KG

?Size
Order information

Suitable Motherboard

description

CPU?optional

ITX110B

Support LGA1151?socket Intel 6^th?and 7^th

i3-i5-i7/Pentium/Celeron CPU

H110/H170?high-speed chipset

?

CPU?type：

Intel?6/7^th?i3-i5-i7/Pentium/Celeron?CPU
