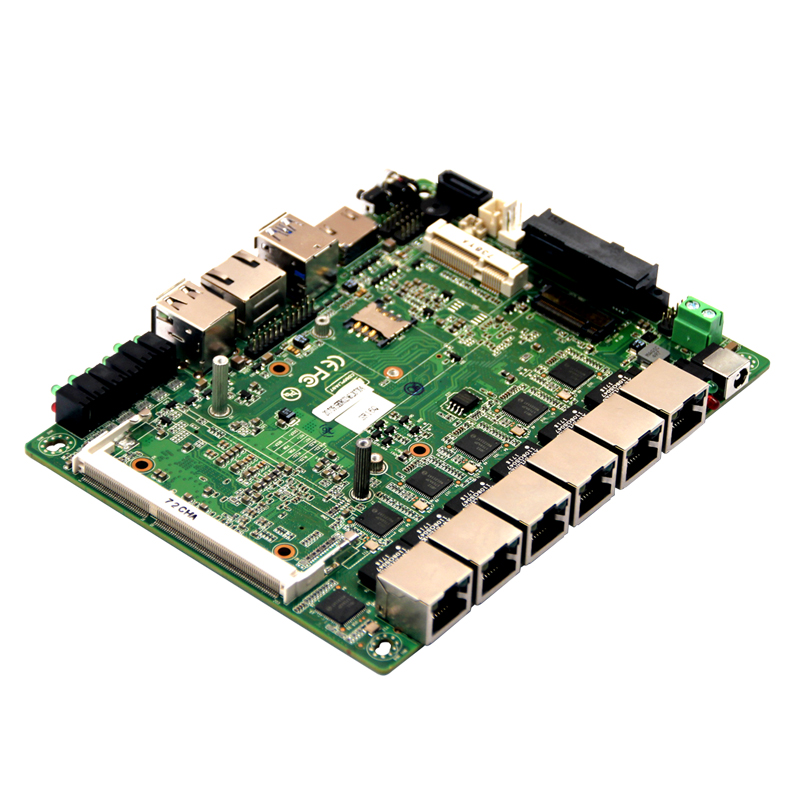

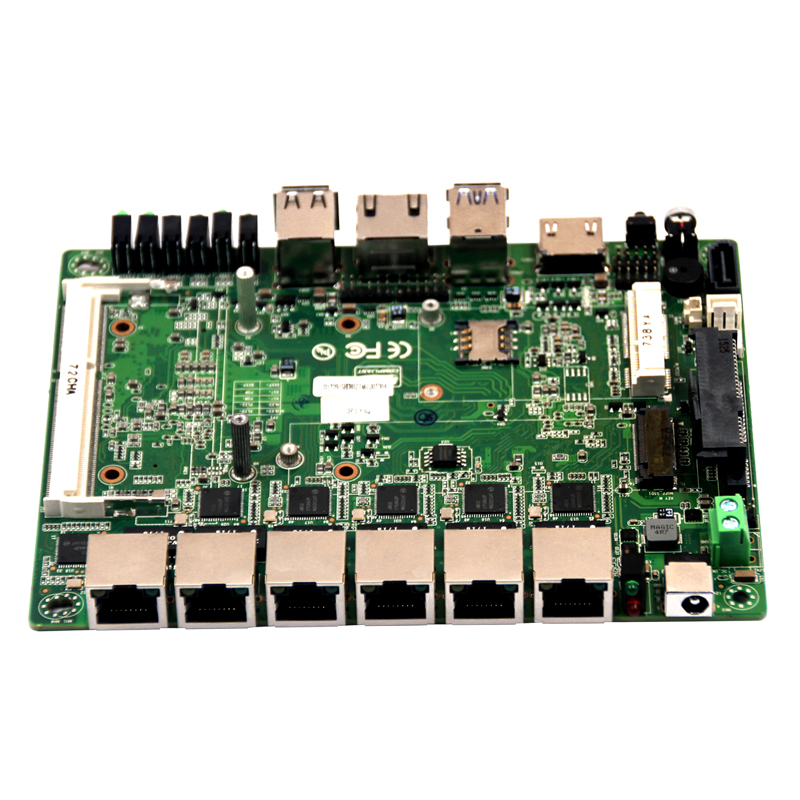

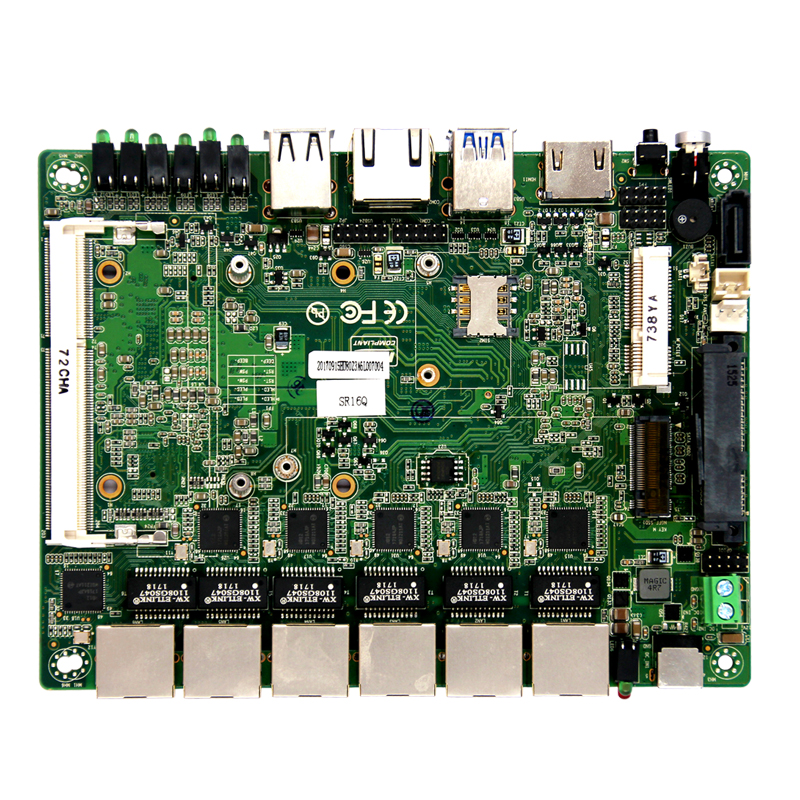

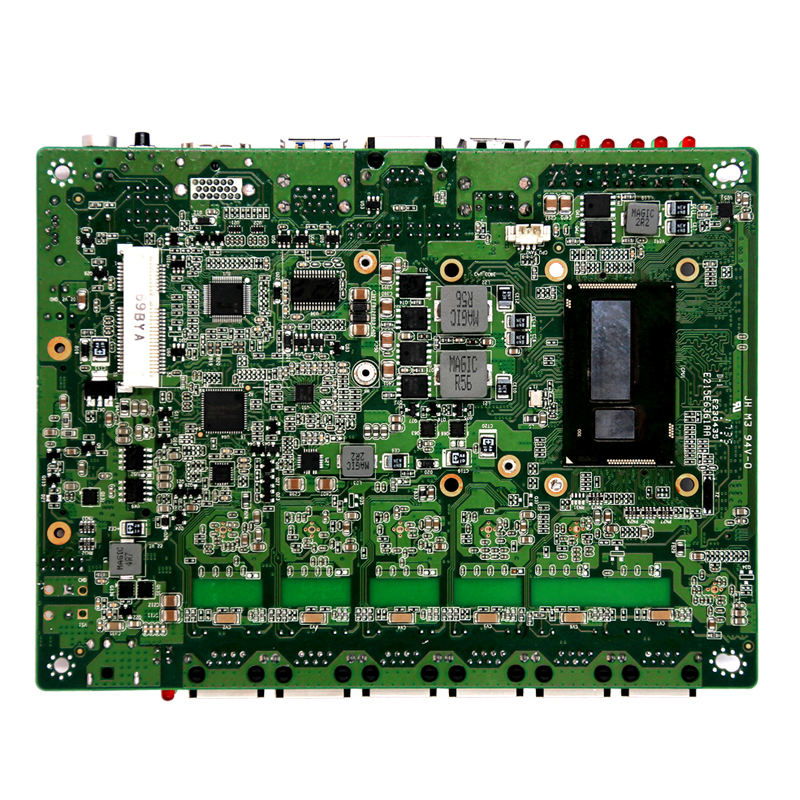

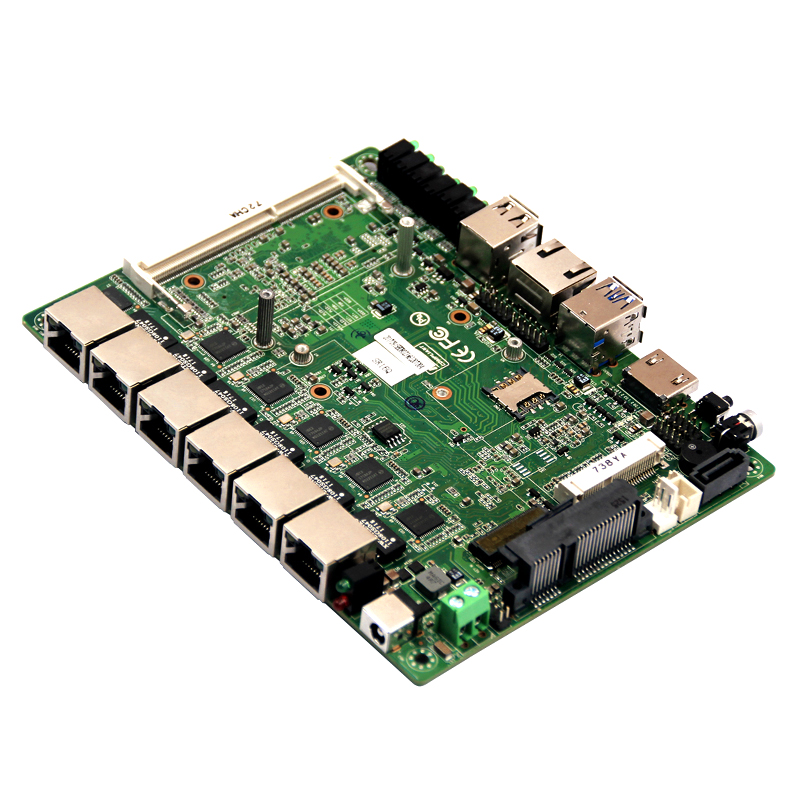

HU90Z3A6L

Model : HU90Z3A6L

Description :
◆ Integrated Intel Core? 5th Broadwell-U Single Chip CPU；
◆ 1 *DDR3 SODIMM 204 Socket；
◆ Provide 1*HDMI1.4（support 4K display output）；
◆ 1*NGFF high speed data transfer interface；
◆ Support Power on automatic Starting up，jumper line selection；
◆ Single input DC power,DC12-19V Power Supply；
◆ Size : 154.8*117.4mm；

Product recommendation

Fanless Industrial Mini PC Intel 12th Gen Alder Lake-N N97 N305 x7425E 3RJ45 Lan 6Com

N-BOX-S6

6th-12th Gen Indusreial Mini PC 6 Ethernet Port Core I3 I5 I7 N150 N100 Pfsense Firewall Mini PC with Fan

N-BOX-S5F

Nano ITX Motherboard 12th 13th Gen Core i3 i5 i7 6 Lan Firewall Industrial PC Mainboard

AD600NA6L

12th 13th Gen IOT Industrial Mini PC EDGE Computing Box

Q-BOX-E10

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Integrated Intel Core? 5^thBroadwell-U Single Chip CPU；

◆ 1 *DDR3 SODIMM 204 Socket；

◆ Provide 1*HDMI1.4（support 4K display output）；

◆ 1*NGFF high speed data transfer interface；

◆ Support Power on automatic Starting up，jumper line selection；

◆ Single input DC power,DC12-19V Power Supply；

◆ Size : 154.8*117.4mm；

SPECIFICATION

? Processor	CPU	Intel? Core??5^th^??Broadwell-U Soc i3/i5/i7?CPU
	CPU?Package	BGA
	Chipset	Intel? Broadwell-U?series SOC
	BIOS	EFI BIOS
RAM	Technology framework	Single Channel DDR3L?1066/1333/1600MHz
RAM	RAM socket	1*DDR3 SODIMM 204 Socket；
? Video	Graphic controller	Intel HD Graphics 5500(I3-5010U’s graphics）；Graphics?model is connected?with?CPU
? Video	HDMI	Resolution maximum?support（HDMI1.4）3200*2000@60HZ，support 4K display output
Rear Panel I/O	Ports	1HDMI,6LAN,2USB3.0,2USB2.0,1Switch button,1Reset button,1RJ45?Serial ports,1DC?port,1Hard disk indicator,1Power Indicator，LAN?Indicator
Network	Controller	6*Intel I211?Gigabit Ethernet，RJ45?ports
Super ?I/O	Controller	ITE8613E
Hardware monitor	Watchdog & Timer	0~255 timer ?(Watchdog code optional)
Hardware monitor	Cooler	Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment)
? Input/Output Interface	USB	2USB3.0 (compatible USB1.1/2.0),4USB2.0 Max. Current supported +5V/1A
	Serial ports	1*RS-232?or RJ45 port RS232（Optional）
	PS/2	1*PS/2?pin header
	GPIO	8bit,Sample code optional/Free definition of input/output,3.3V@24mA level
Extended bus	Mini-PCle	1*Mini-PCIe socket,Support PCIe and USB devices
Storage	SATA	1*Standard SATAIII?ports,Maximum?transmission?rate?to 6gb/s
	SATA HDD1	1*SATA_HDD?Hard disk interface,Maximum?transmission?rate?to 6gb/s
	NGFF_SSD	1*NGFF_SSD interfaces
	M-SATA	1*Mini-PCIe M-SATA Scoket,Support SANDISK?protocol，Maximum?transmission?rate?to 6gb/s
Power Supply	Power Type	Single input DC power,DC12-19V，+/-5%
Power Supply	Power Consumption	35W
? Working environment	Working Temperature	-20℃ ~ +60℃
	Storage Temperature	-40℃ ~ +85℃
	Operating Humidity	0%~90% (non-condensing)
	Storage Humidity	0%~90% (non-condensing)
Dimensions	Size	154.8*117.4mm
Dimensions	Weight	0.5KG
Certificates	?	CE,RoHS,FCC

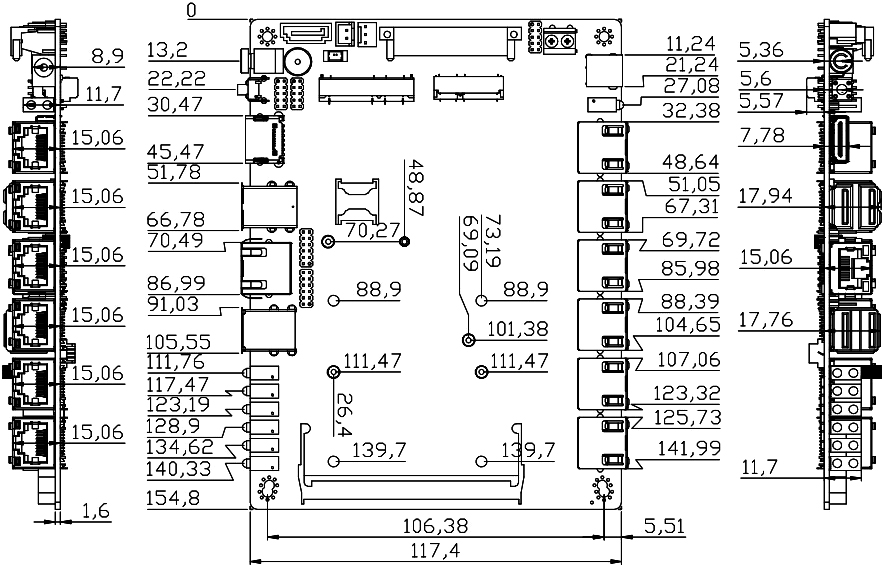

Size：

? ? ? ?? ? ?

Order information reference

Model No.

SPECIFICATION

CPU(Optional)

HU90Z3A6L-I3

Integrated Intel 5^th^??Mobile Broadwell-U

Support 5rd Intel? Core? i3

For example：I3-5005U，I3-5010U

HU90Z3A6L-I5

Integrated Intel 5^th^??Mobile Broadwell-U

Support 5rd Intel? Core? i5

For example：I5-5200U,I5-5300U

HU90Z3A6L-I7

Integrated Intel 5^th^??Mobile Broadwell-U

Support 5rd Intel? Core? i7

For example：I7-5500U,I7-5600U

? ? ? ? ? ? ? ? ? ? ? ? ? ?

HU90Z3A6L
