Processor

Onboard Intel Alder Lake-N Series Processor, N150/N100/N95/N300

EFI BIOS

Ram

Onboard LPDDR5x memory particles up to 16GB

Storage

1*M.2 M-Key 2242, (NVMe PCIe3.0 x2/SATA3.0 protocol adaptive)

Expansion Slot

M.2 E-Key, (PCIe3.0 x1 + USB2.0 protocol), WIFI/BT

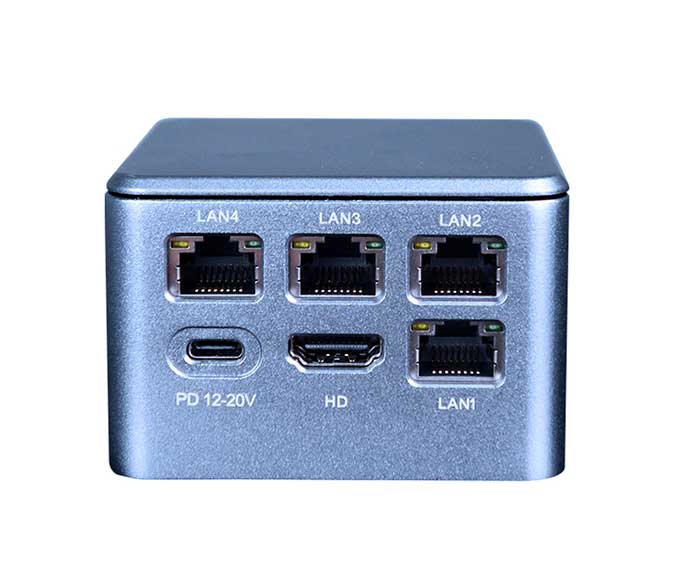

I/O port

4*2.5G LAN (3*Intel 226-V, 1*RTL8156B)

1*HD-MI2.0, 1*Type-C (USB+DP)

2*USB3.0, 2-in-1 audio jacks

Power on button, 1 reset hole

Type-C power input, support PD power supply

Power supply

DC 12-20V, 3A/PD

Working Environment

Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90

Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90

System

Windows 10, Windows 11, Linux

Size

75x75x52mm

material

Metal body with plastic top cover

Weight

Packaging without adapter ~400g, with adapter ~450g

Module

Optional

Optional description

C-BOX-M3

Onboard Intel Alder Lake-N Series Processors

N150/N100/N95/N300

Onboard Memory Pellets

8GB/16GB optional
